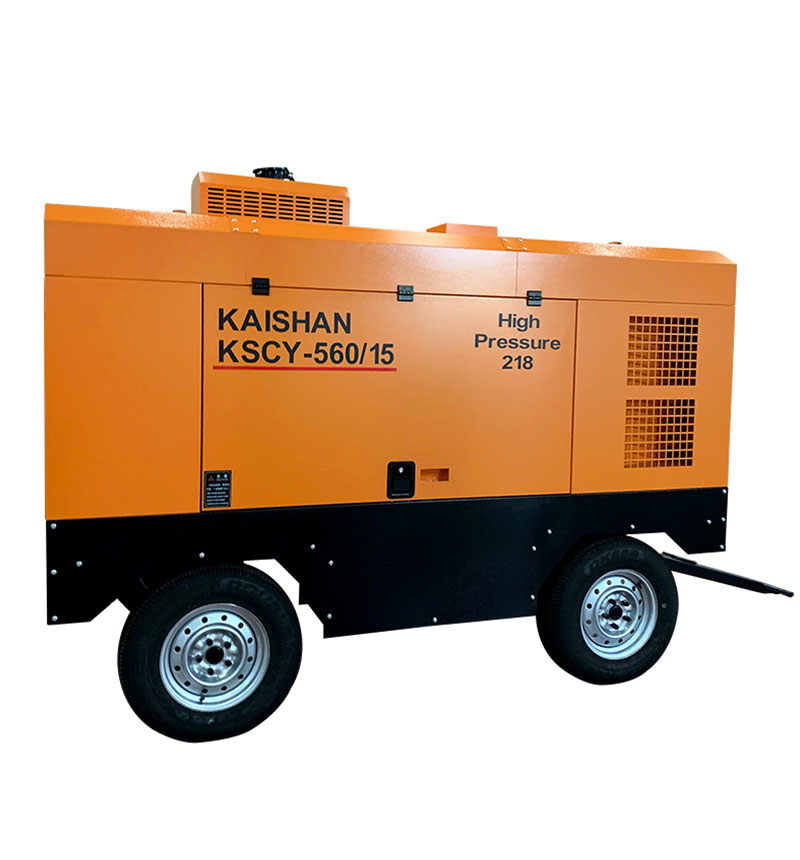

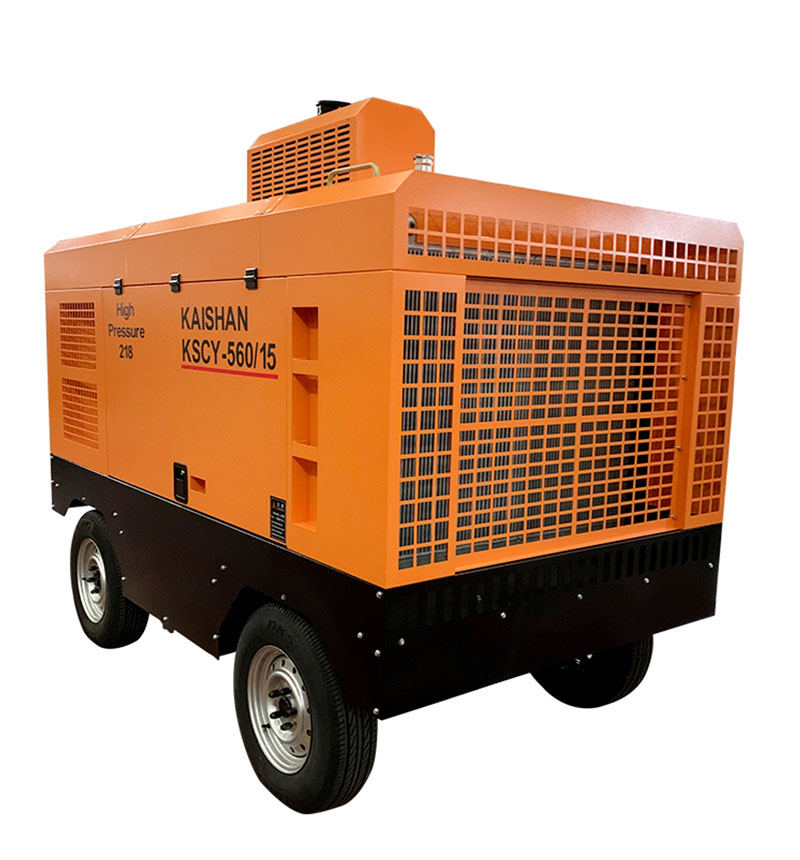

KSCY-560/15 Portable Diesel Screw Air Compressor
Dimension(L*W*H):3800*1600*2180 mm
Weight:2500 kg
Working pressure:15 bar
Capacity:560 CFM / 15 m³/min
Quantities can be customized
Features of KSCY-560/15 diesel engine screw air compressor :
1.Silent operating and less vibration design. Easy serviceability.
2.Low fuel consumption to realize far distance outdoor usage; Full protection system, energy saving.
3.High efficient Air end: Large diameter rotor, air end connect with diesel engine through coupling and no reduction gear inside, more reliability, the rotation speed is same with the diesel engine's, more longer lifespan.
4.Diesel Engine of Famous Brand: Select the diesel engine of Cummins and Yuchai brand, satisfy the emission requirement of Europe, low oil consumption, after-sale service system all over China.
5.Good adaptability: The Portable Air Compressor automatically control the air delivery of diesel engine by matching the demand of air consumption,
which equals to frequency conversion control in motor power screw air compressor.
Application scope of KSCY-560/15 diesel engine screw air compressor:
Belt driven air compressor is widely used in highways, railways, mines, water conservancy, and shipbuilding, urban construction,energy, military and other industries.

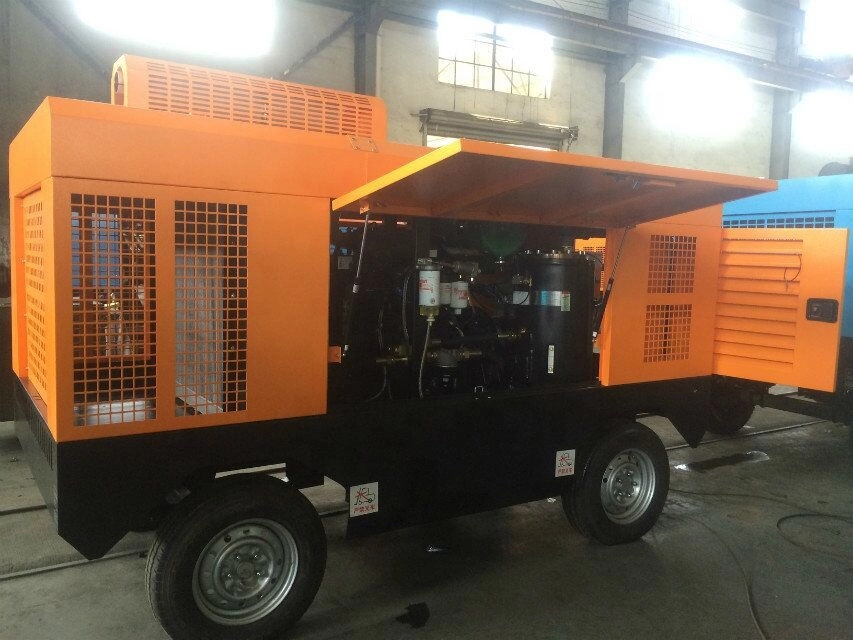

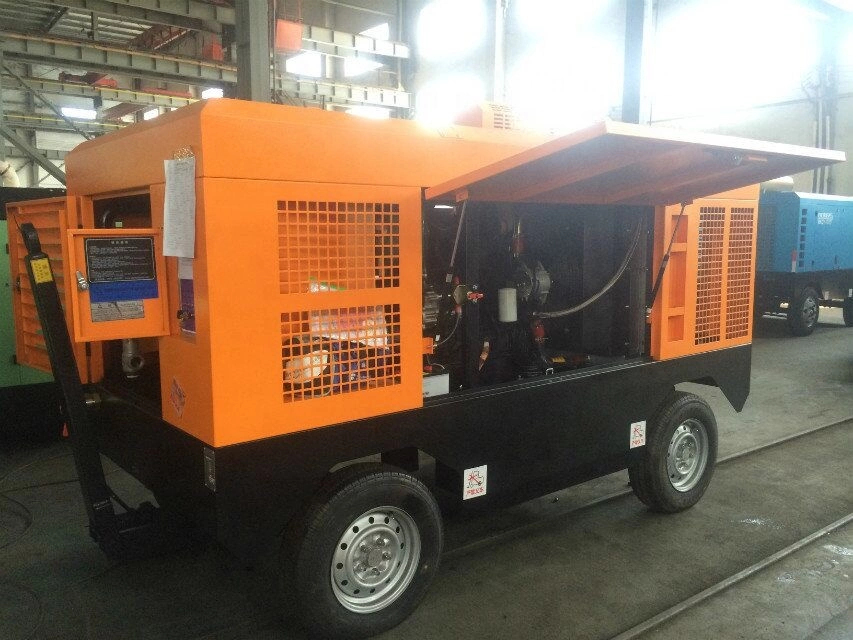

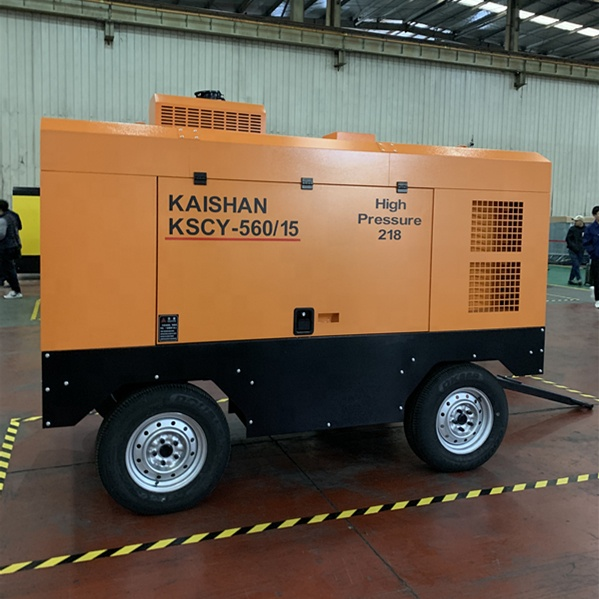

Detail Image
Model |
KSCY-560/15 |
Dimension(L*W*H)
|
3800*1600*2180 mm
|
Weight
|
2500 kg
|
Working Pressure
|
15 bar
|
Diesel consumption
|
25.65 L/H
|
Air end
|
SKKE152-10
|
Air delivery
|
560 CFM / 15 m³/min
|
Rotation Speed
|
2200rpm
|
Application
|
Construction work, mining, quarry
|
Machine Color
|
Orange
|
Diesel Engine
|
Yuchai 220HP
|

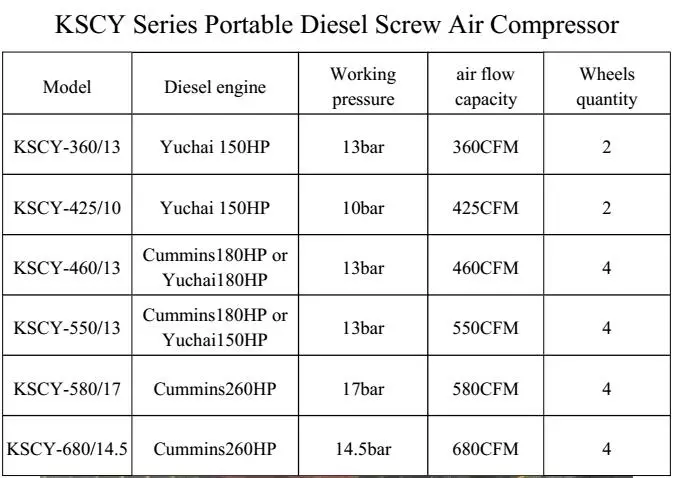

Other Model Of KSCY Series Screw Air Compressor
