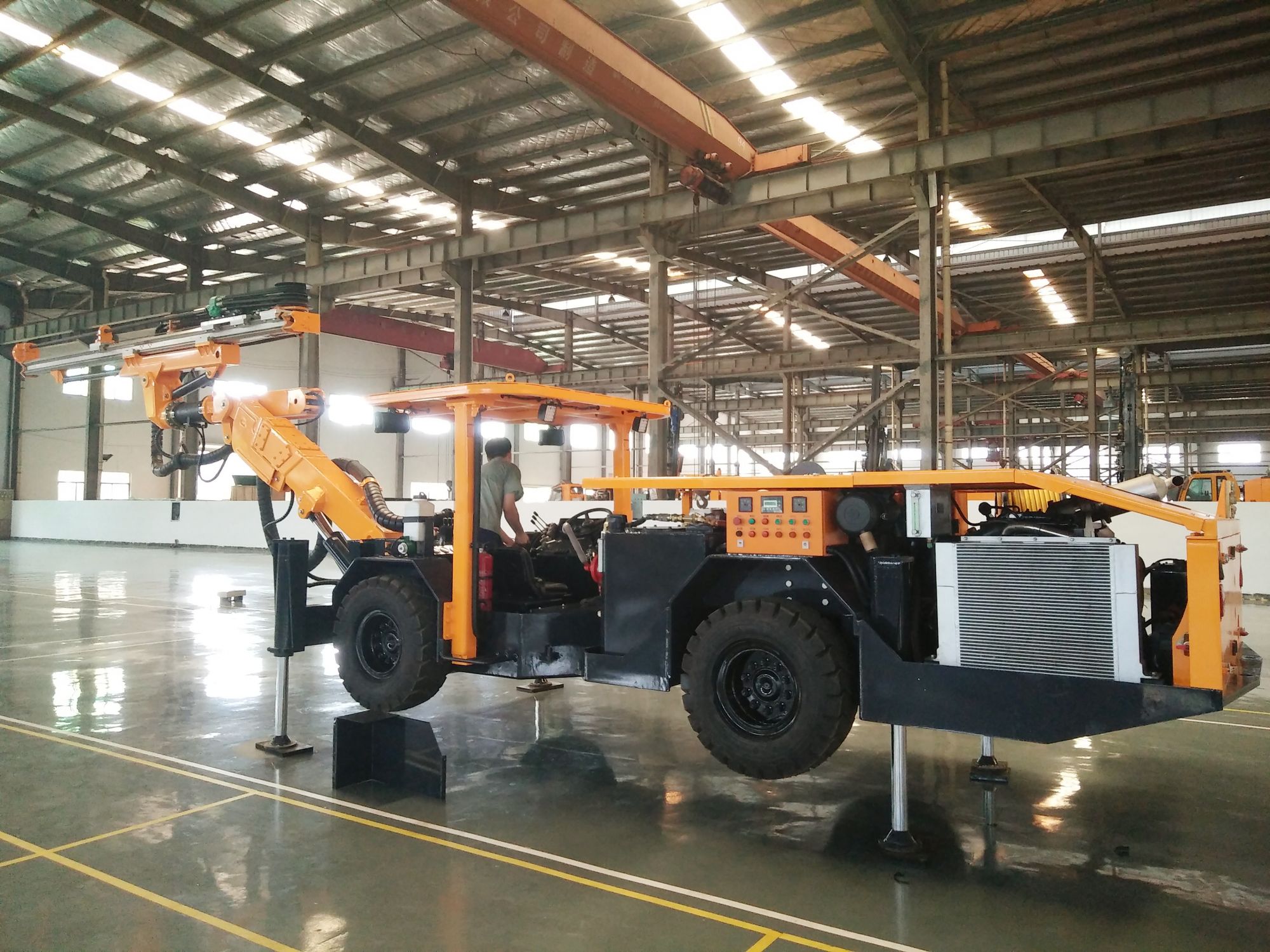

KJ211 All-hydraulic Tunneling Jumbo Drilling Rig
Length:11150mm
Width:1600mm
Height:1850/2650mm
Weight:11000 kg
Quantities can be customized

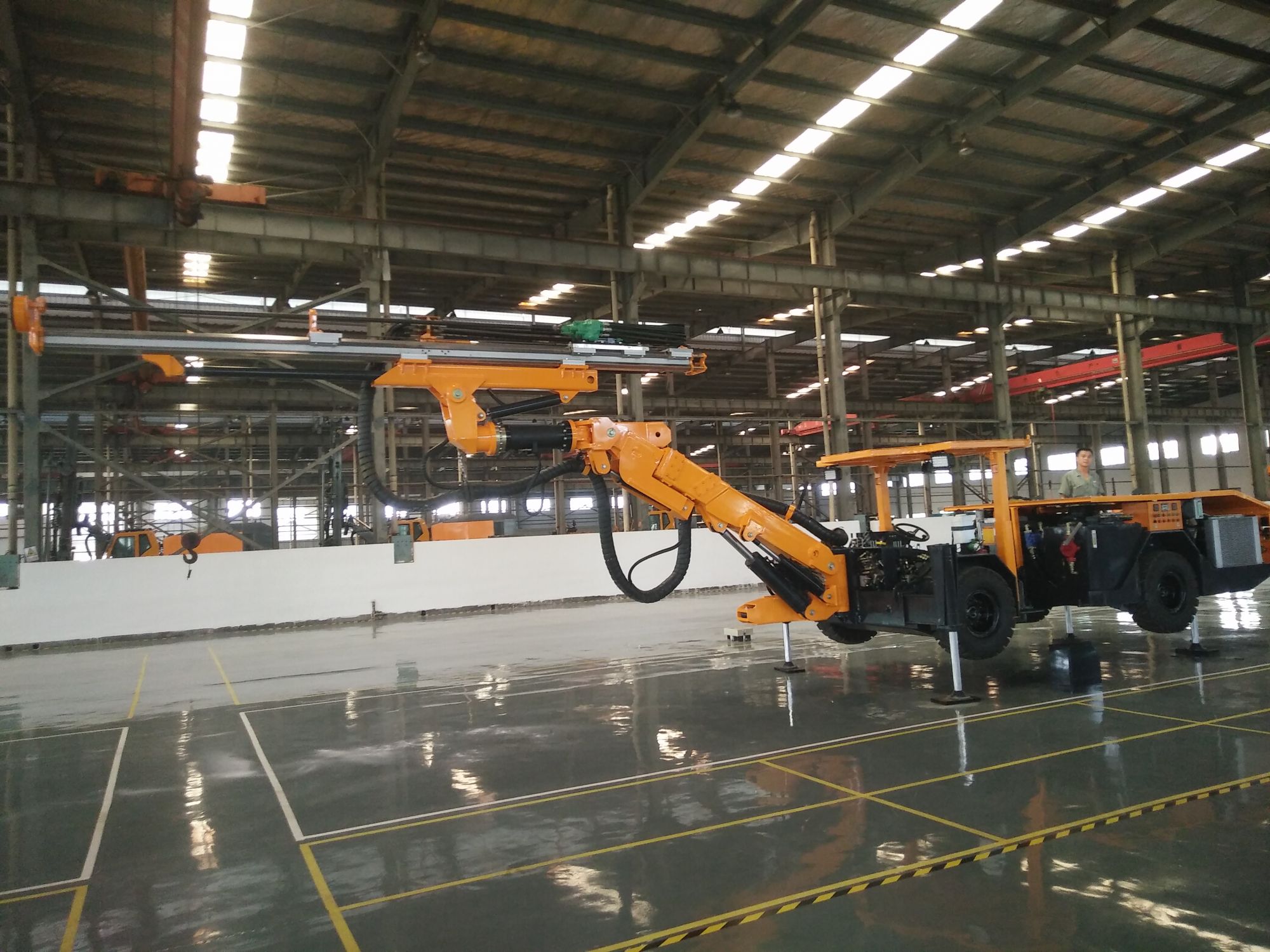

Its firm and reliable universal big arm has the best shape of section coverage, boosting the 360° overturn and automatic leveling of the beam for rapid and convenient borehole positioning. The big arm can also be used for lateral cross hole opening and anchor rod boring operations.

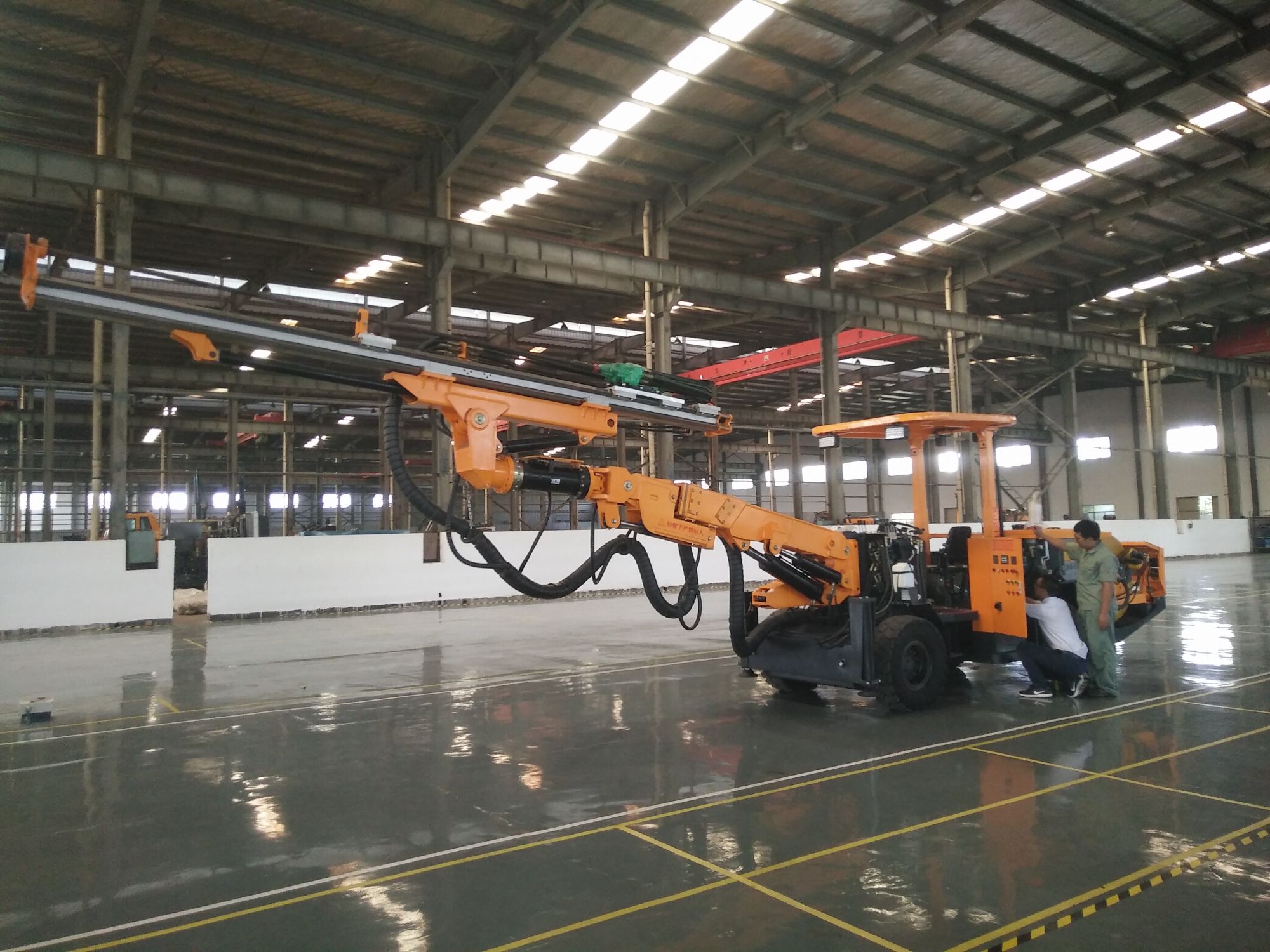

The arrangement of the jumbo ensures the good view of the operator.

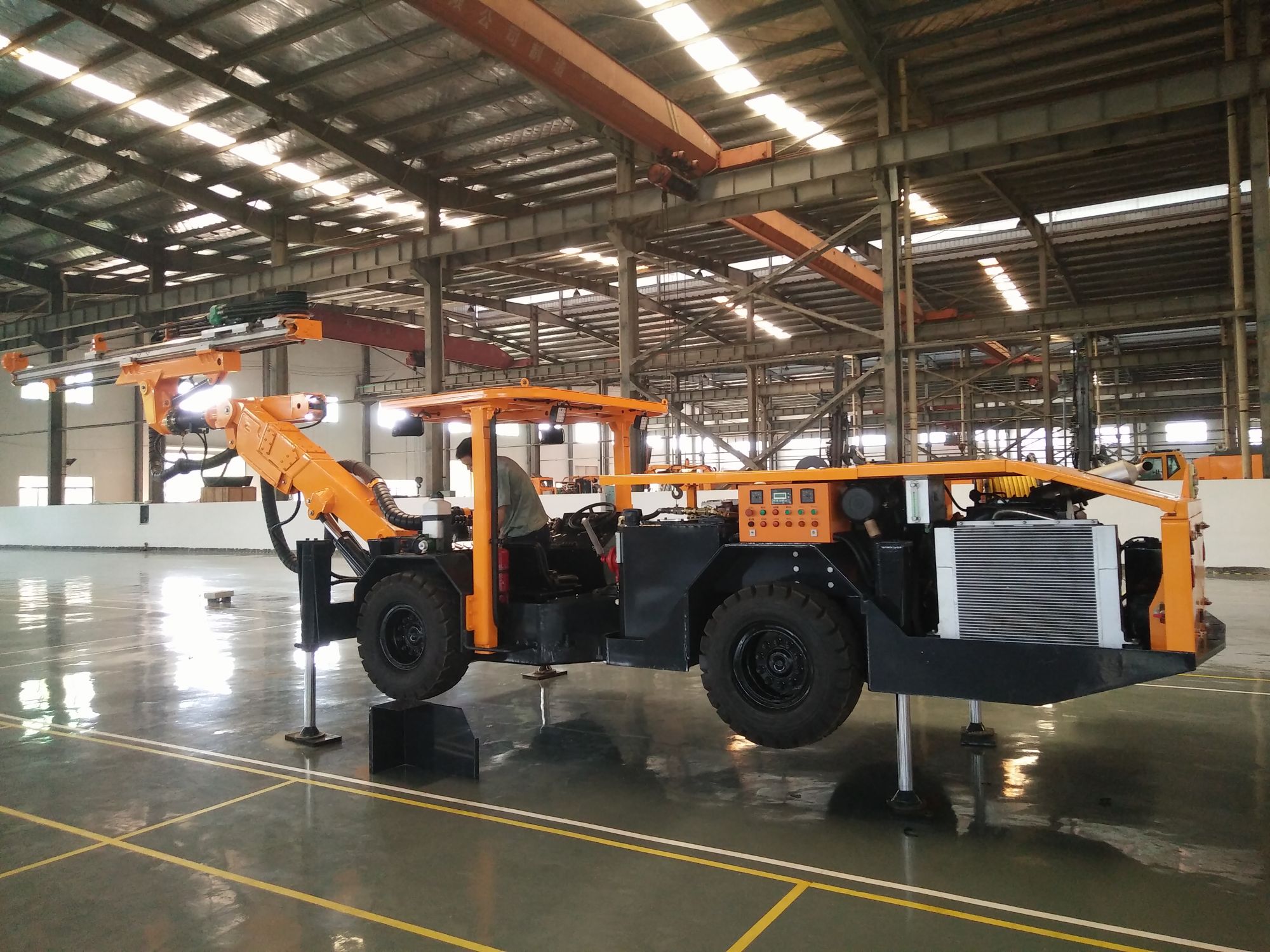

Evenly-arranged and powerful 4-wheel drive hinge chassis ensures flexible, quick and safe driving in a narrow roadway.
The high-frequency percussion rock driller uses the cascaded piston to optimize the efficiency of shock wave transmission, raise the drilling speed, reduce clamping bit consumption and enhance the soundness of device.
The big space of operation and a series of automatic functions can help the driver to concentrate their attention to safe, rapid and accurate tunneling.
All its repair and maintenance parts have been protected well, and its repair and maintenance are easy.
.png)
.png)

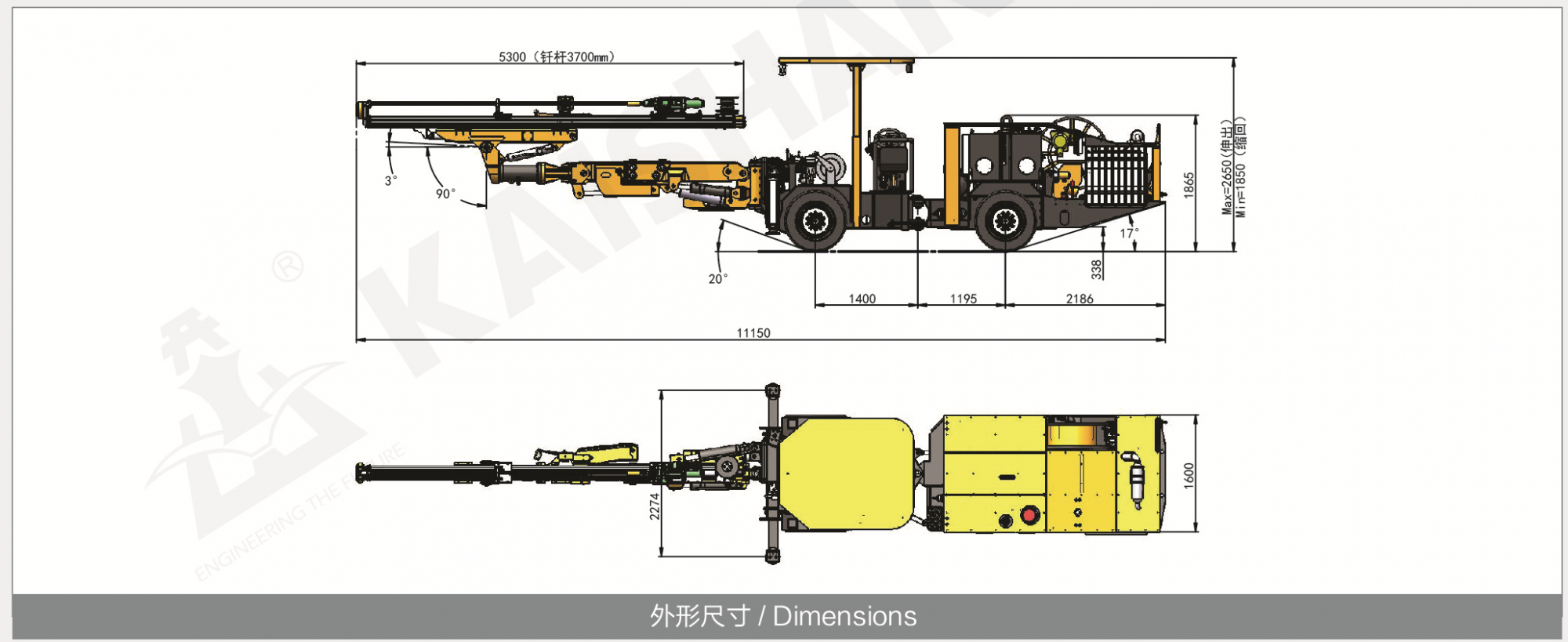

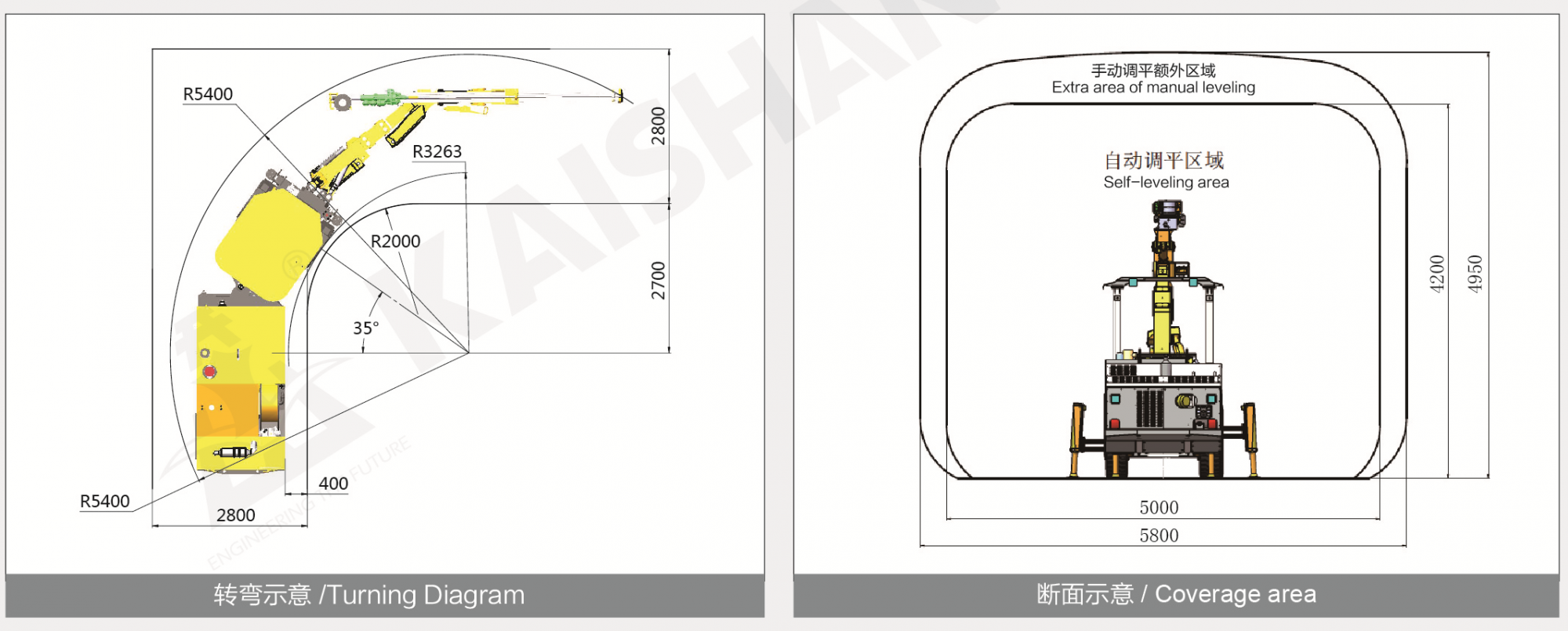

Dimensions and weight | |||
Length | 11150 mm | ||
Width | 1600 mm | ||
Height | 1850/2650 mm | ||
Weight | 11000 kg | ||
Travelling speed on flat ground | 10 km/h | ||
Climbing capacity | 25% (14°) | ||
Security | |||
Noise level | <110 dB(A) | ||
Lifting safety ceiling | Meet the requirements of FOPS and ROPS. | ||
Drilling system | |||
Rock drill | 1×HC50/R38 | 1×HC109/R38 | 1×HC95LM/R38 |
Impact power | 13 kw | 18.8 kw | 21 kw |
Impact flow | 105 L/min | 135 L/min | 100-120 L/min |
Impact pressure | 130 bar | 135 bar | 180 bar |
Maximum rotation pressure | 150 bar | 150 bar | 210 bar |
Imapact Frequency | 62 Hz | 47 Hz | 62 Hz |
Torque | 325Nm | 780Nm | 764Nm |
Hole diameter | φ32-76 mm | φ45-102 mm | φ42-102 mm |
Beam rotation | 360° | ||
Feed extension | 1600mm | ||
Model of drill boom | K22 | ||
Form of drill boom | Self-leveling | ||
Extension of drill boom | 800mm | ||
Electric hydraulic power unit | |||
Electric motor | 45kw | 55kw | 75kw |
Impact/ Feed/ Positioning | Axial variable displacement piston pump | ||
Rotation | Gear pump | ||
Filter fineness | 10μ | ||
Hydraulic oil tank | 240L | ||
Hydraulic cooler | Water cooler | ||
Working pressure | 380V | ||
Frequency | 50Hz | ||
Starting method | Star - triangle | ||
Cable reel | 1×F440 | ||
Cable capacity of the reel | 100m / 80m | ||
Specifications of cable | 3×35+3G6+2×1.5 / 3×50+3G6+2×1.5 | ||
Air and water system | |||
Air compressor | 1×JN4 | ||
Displacement | 0.5 m³/min | ||
Pressure | 6-8 bar | ||
Device of shank lubrication | Electronic pulse lubrication pump | ||
Air consumption of lubrication | 0.3 m³/min | ||
Oil consumption of lubrication | 180-250 g/h | ||
Pump | 1×CR3 / 1×CR5 | ||
Power | 1.5 kw / 5.5 kw | ||
Pump displacement | 3 m³/h / 6 m³/h | ||
Chassis | |||
Diesel engine | Cummins QSB3.9-C80-31 (60kw,2200rpm) | ||
Exhaust purification | Exhaust catalyst | ||
Drive system | Closed hydraulic system for four-wheel driving | ||
Swing angle | Swing of rear axle: ±6° | ||
Tires | 300-15 | ||
Steering mechanism | Articulated steering: ±35° | ||
Parking braking | Wet multidisc brake | ||
Travelling braking | Hydrostatic braking | ||
Fuel tank | 30L |
