KW200/YCW200 Hydraulic Crawler Water Well Drilling Rig
Drilling depth(m) :200
Drilling hole diameter(mm) :φ140-305
Working pressure (bar ):17-30
Air consumption (m³/min ):17-31
Quantities can be customized
Share with :
- Product description
- Technical Parameters
- Inquiry
KW200/YCW200 Hydraulic Crawler Water Well Drilling Rig is drilling drilling equipment for light, high efficiency, multi function. With the advantages of advanced structure, convenient operation, high working efficiency, reliable and durable, widely used in drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other uses of well bore, especially suitable for mountain and rock formation water project. The drill car using new hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder pushing, dramatically reducing the labor intensity, shortens the auxiliary time, improve the construction efficiency and quality of the project.

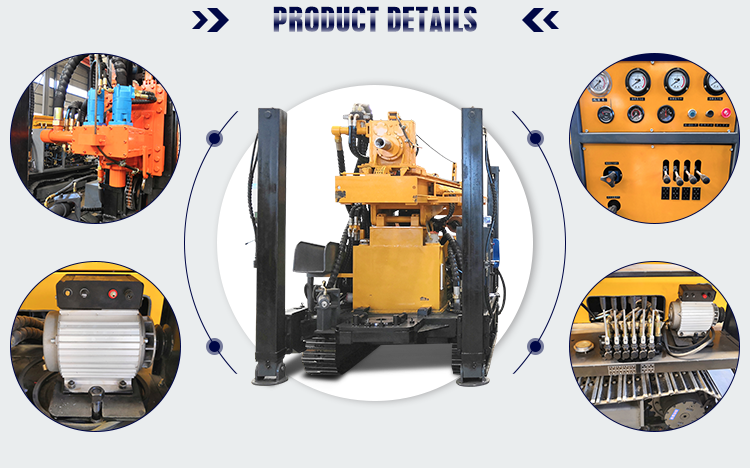

Detail Image
KSZJ Series Air Compressor for 200m Water Well Dril Rig
.jpg)
BW250 Mud Pump for 200m Water Well Dril Rig
Detail Image
KSZJ Series Air Compressor for 200m Water Well Dril Rig
BW250 Mud Pump for 200m Water Well Dril Rig

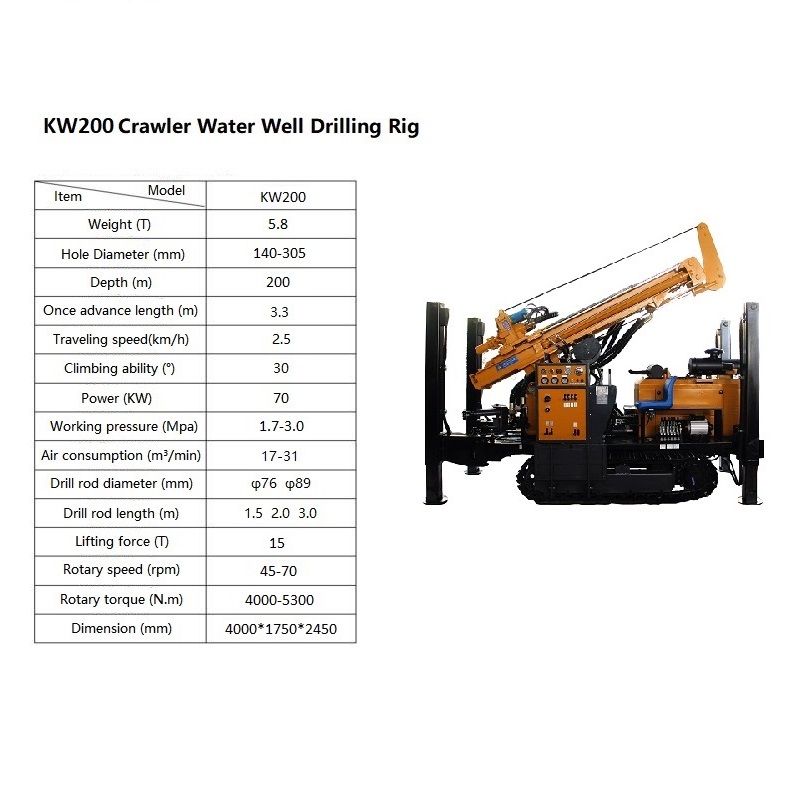

Technical Parameters of KW200/YCW200 Hydraulic Crawler Water Well Drilling Rig
