KQZ120 Driven Wheel Portable Hydraulic Water Well Drilling Rig

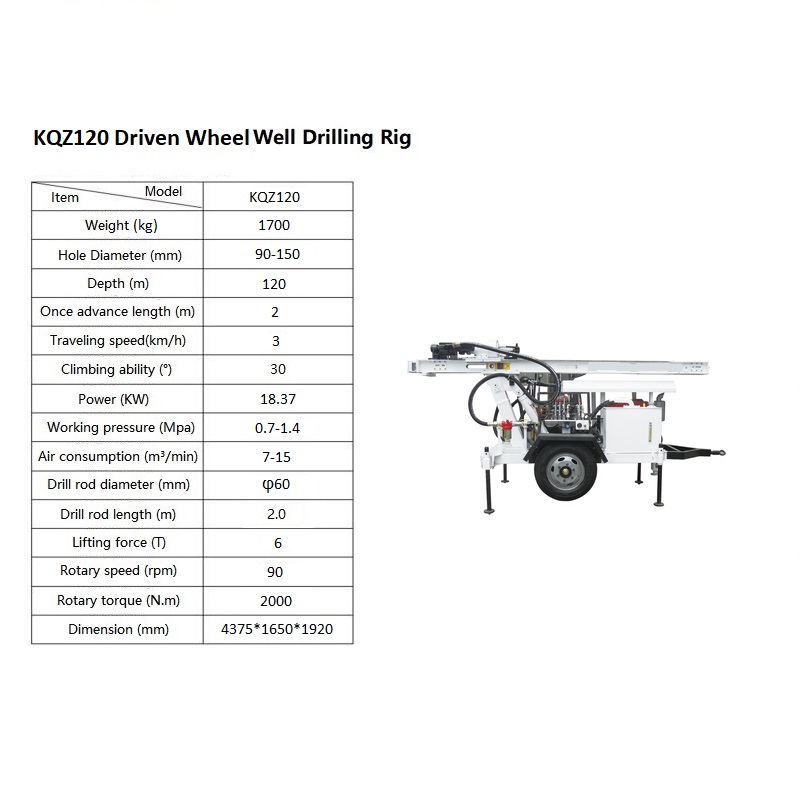

Drilling depth(m) :120
Drilling hole diameter(mm) :φ90-150
Working pressure (bar ):7-14
Air consumption (m³/min ):7-15
Quantities can be customized

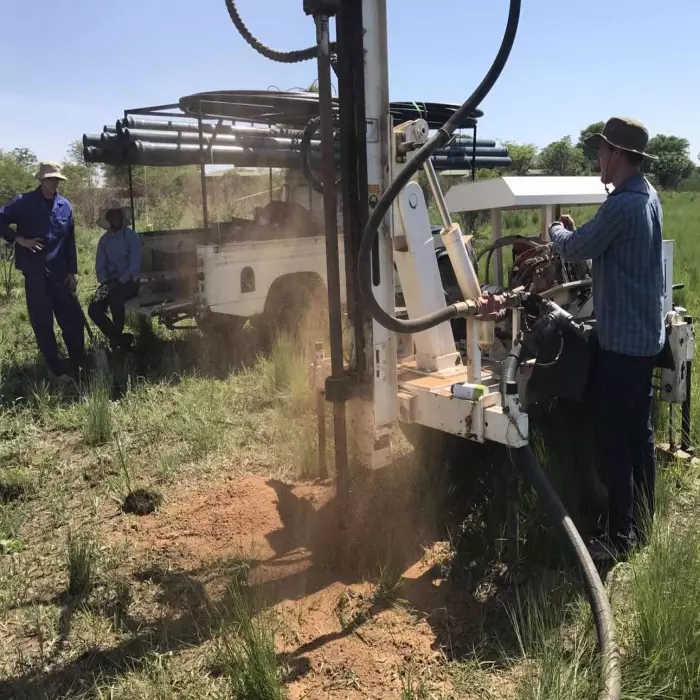

KQZ120 Driven Wheel Portable Hydraulic Water Well Drilling Rig is drilling drilling equipment for light, high efficiency, multi function. With the advantages of advanced structure, convenient operation, high working efficiency, reliable and durable, widely used in drilling wells, agricultural irrigation wells, geothermal air conditioning holes and other uses of well bore, especially suitable for mountain and rock formation water project. The drill car using new hydraulic technology, supporting high torque hydraulic motor rotation and large bore hydraulic cylinder pushing, dramatically reducing the labor intensity, shortens the auxiliary time, improve the construction efficiency and quality of the project.

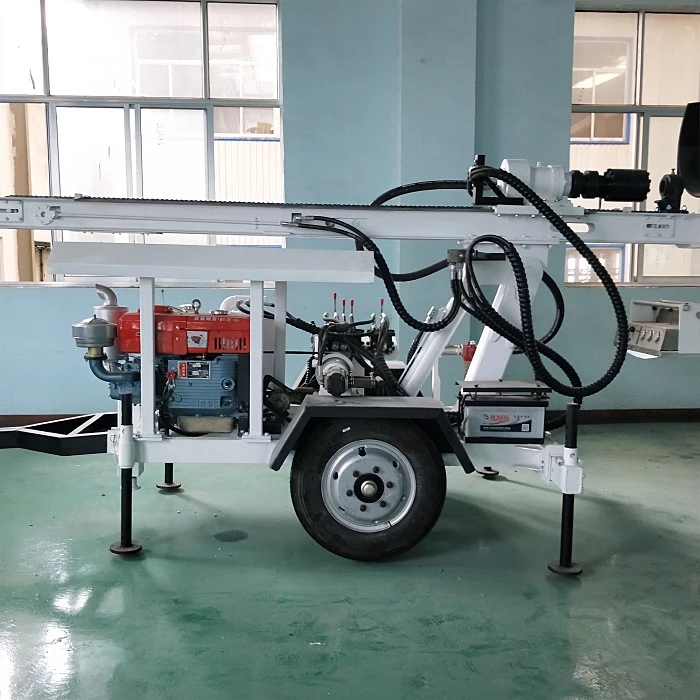

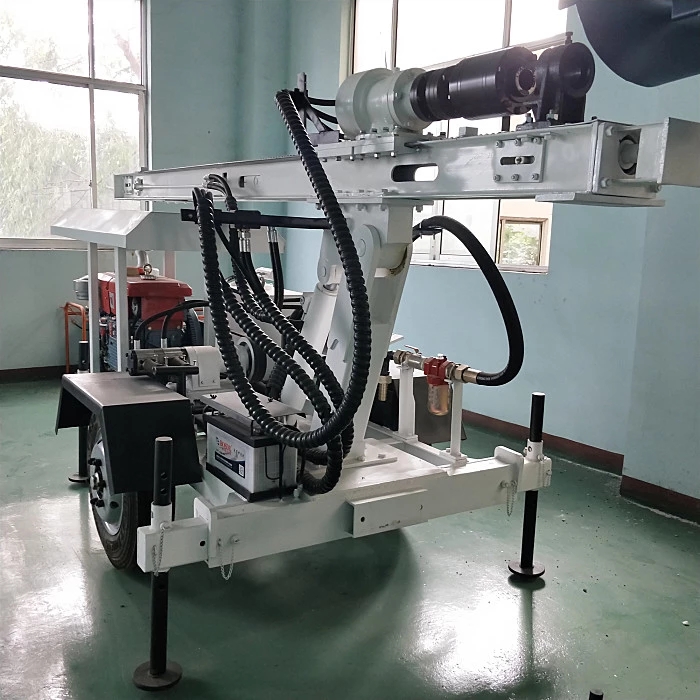

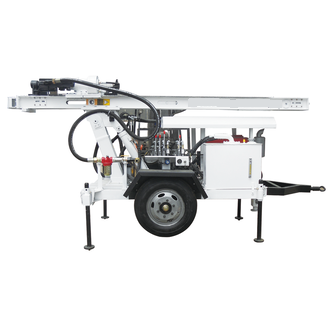

Detail Image

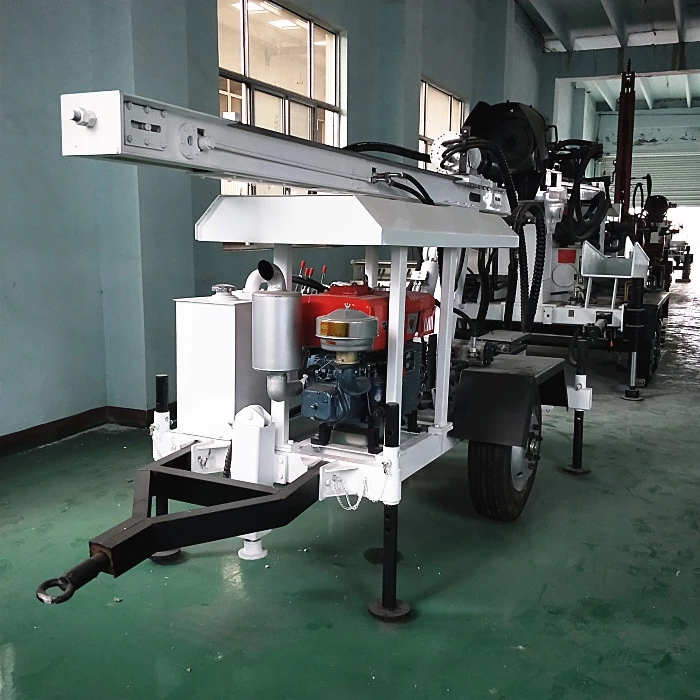

Detail Image
